Universal NFT

The Universal NFT standard enables non-fungible tokens (ERC-721 NFT) to be minted on any chain and seamlessly transferred between connected chains.

When transferring tokens between chains, a token is burned on the source chain. The token's metadata and information are sent in a message to the token contract on the destination chain, where a corresponding token is minted.

The project consists of two ERC-721 contracts: Connected and Universal.

Universal contract is deployed on ZetaChain. The contract is used to:

  • Mint NFTs on ZetaChain
  • Transfer NFTs from ZetaChain to a connected chain
  • Handle incoming NFT transfers from connected chain to ZetaChain
  • Handle NFT transfers between connected chains

Connected contract is deployed one or more connected EVM chains. The contract is used to:

  • Mint an NFT on a connected chain
  • Transfer NFT to another connected chain or ZetaChain
  • Handling incoming NFT transfers from ZetaChain or another connected chain

A Universal contract deployment on ZetaChain is required, while Connected contracts can be deployed as needed to enable token transfers for specific chains.

A universal NFT can be minted on any chain: ZetaChain or any connected EVM chain. When an NFT is minted, it gets assigned a persistent token ID that is unique across all chains. When an NFT is transferred between chains, the token ID remains the same.

An NFT can be transferred from ZetaChain to a connected chain, from a connected chain to ZetaChain and between connected chains. ZetaChain acts as a hub for cross-chain transactions, so all transfers go through ZetaChain. For example, when you transfer an NFT from Ethereum to BNB, two cross-chain transactions are initiated: Ethereum → ZetaChain → BNB. This doesn't impact the transfer time or costs, but makes it easier to connect any number of chains as the number of connections grows linearly.

Cross-chain NFT transfers are capable of handling reverts. If the transfer fails on the destination chain, an NFT will be returned to the original sender on the source chain.

NFT contracts only accept cross-chain calls from trusted NFT contracts. Each contract on a connected chain stores a universal contract address — an address of the Universal contract on ZetaChain. The Universal contract stores a list of connected contracts on connected chains. This ensures that only the contracts from the same NFT collection can participate in the cross-chain transfer.

Universal NFT can be imported from npm:

contracts/Connected.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.8.26;

import "@zetachain/standard-contracts/nft/contracts/evm/UniversalNFT.sol";

contract Connected is UniversalNFT {
    constructor(
        address payable gatewayAddress,
        address owner,
        string memory name,
        string memory symbol,
        uint256 gasLimit
    )
        UniversalNFT(gatewayAddress, gasLimit)
        Ownable(owner)
        ERC721(name, symbol)
    {}
}
contracts/Universal.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.8.26;

import "@zetachain/standard-contracts/nft/contracts/zetachain/UniversalNFT.sol";

contract Universal is UniversalNFT {
    constructor(
        address payable gatewayAddress,
        address owner,
        string memory name,
        string memory symbol,
        uint256 gasLimit,
        address uniswapRouter
    )
        UniversalNFT(gatewayAddress, gasLimit, uniswapRouter)
        Ownable(owner)
        ERC721(name, symbol)
    {}
}

The Universal contract constructor accepts a Uniswap router address. It is recommended to use the official Uniswap v2 router address, however, any Uniswap v2-compatible router should work. Uniswap is used to swap between ZRC-20 versions of gas tokens to cover outgoing (ZetaChain to connected chain) calls.

After deploying a Connected contract but before making cross-chain transfers, you must set the Universal contract address.

npx hardhat connected-set-universal --contract "$CONTRACT_ETHEREUM" --universal "$CONTRACT_ZETACHAIN" --network sepolia_testnet

You also need to set the mapping between a Connected contract address and a ZRC-20 address of the gas token of the connected chain.

npx hardhat universal-set-connected --contract "$CONTRACT_ZETACHAIN" --connected "$CONTRACT_ETHEREUM" --zrc20 "$ZRC20_ETHEREUM" --network zeta_testnet

Setting both addresses establishes a trusted connection between a Connected contract and a Universal contract.

Mint an NFT on ZetaChain:

npx hardhat mint --network zeta_testnet --contract "$CONTRACT_ZETACHAIN" --token-uri https://example.com/nft/metadata/1
{"contractAddress":"0x83E60C63b38974Cfe89c287f2b9ddF153eBD13A1","mintTransactionHash":"0xf2544827e5ac4434a300bca190f6b5e391e3cd7c87e515ac2dee4f7cb3b14e44","recipient":"0x4955a3F38ff86ae92A914445099caa8eA2B9bA32","tokenURI":"https://example.com/nft/metadata/1","tokenId":"1145931601449361378070955209842677114337257109052"}
npx hardhat transfer --network zeta_testnet --json --token-id "$TOKEN_ID" --from "$CONTRACT_ZETACHAIN" --to "$ZRC20_ETHEREUM"

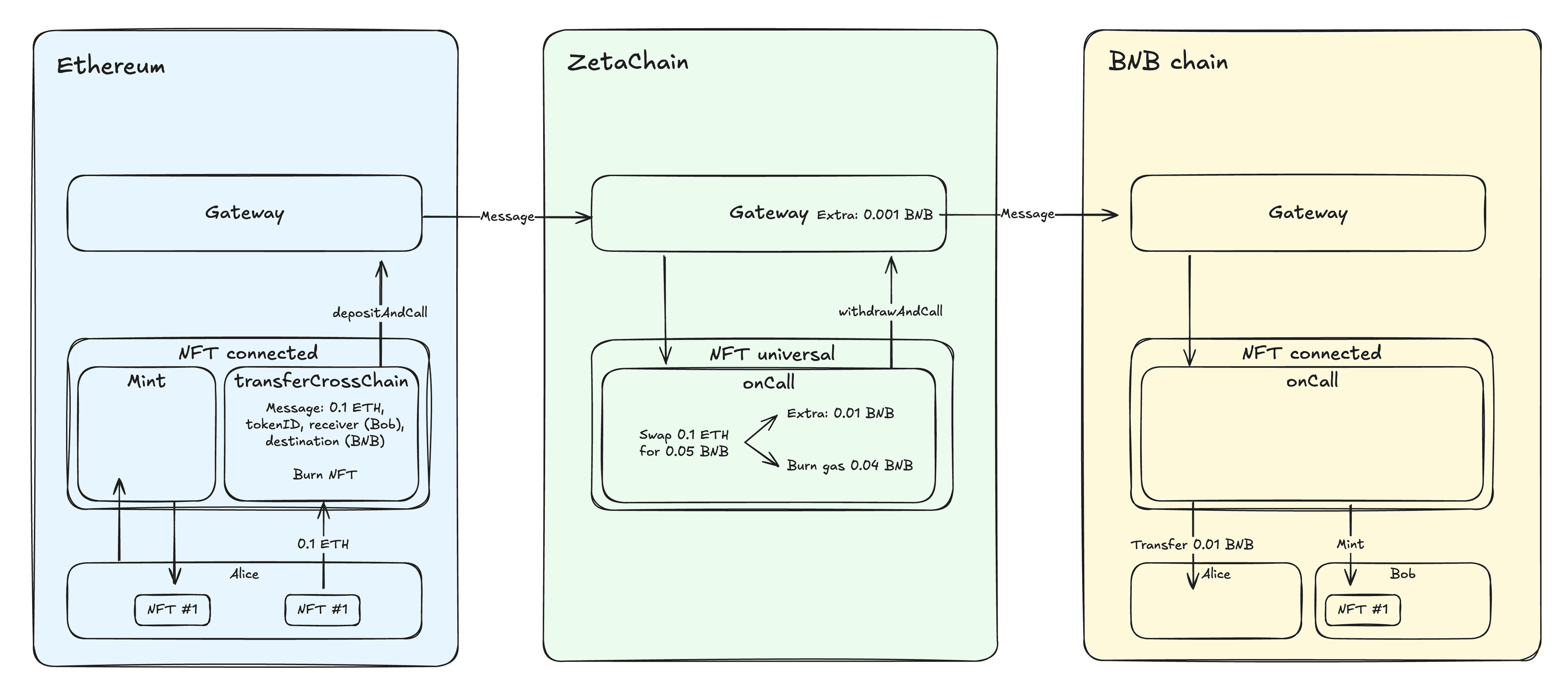

Information below is only relevant if you're interested in how universal NFTs work under the hood. You don't need to copy or edit these contracts directly, they are imported from npm by your universal NFT contract.

https://excalidraw.com/#json=dQJisu_uJ0N8T6IPi2m0E,PJU63ktFfbi1WsfAXsompA

Universal App Contract

evm/UniversalNFT.sol
// SPDX-License-Identifier: MIT
pragma solidity 0.8.26;

import "@openzeppelin/contracts/token/ERC721/ERC721.sol";
import "@openzeppelin/contracts/token/ERC721/extensions/ERC721Enumerable.sol";
import "@openzeppelin/contracts/token/ERC721/extensions/ERC721URIStorage.sol";
import "@openzeppelin/contracts/token/ERC721/extensions/ERC721Burnable.sol";
import "@openzeppelin/contracts/access/Ownable2Step.sol";
import "@zetachain/protocol-contracts/contracts/evm/GatewayEVM.sol";
import {RevertContext} from "@zetachain/protocol-contracts/contracts/Revert.sol";
import "../shared/Events.sol";

abstract contract UniversalNFT is
    ERC721,
    ERC721Enumerable,
    ERC721URIStorage,
    Ownable2Step,
    Events
{
    GatewayEVM public immutable gateway;
    uint256 private _nextTokenId;
    address public universal;
    uint256 public immutable gasLimitAmount;

    error InvalidAddress();
    error Unauthorized();
    error InvalidGasLimit();
    error GasTokenTransferFailed();

    function setUniversal(address contractAddress) external onlyOwner {
        if (contractAddress == address(0)) revert InvalidAddress();
        universal = contractAddress;
        emit SetUniversal(contractAddress);
    }

    modifier onlyGateway() {
        if (msg.sender != address(gateway)) revert Unauthorized();
        _;
    }

    constructor(address payable gatewayAddress, uint256 gas) {
        if (gatewayAddress == address(0)) revert InvalidAddress();
        if (gas == 0) revert InvalidGasLimit();
        gasLimitAmount = gas;
        gateway = GatewayEVM(gatewayAddress);
    }

    function safeMint(address to, string memory uri) public onlyOwner {
        uint256 hash = uint256(
            keccak256(
                abi.encodePacked(address(this), block.number, _nextTokenId++)
            )
        );

        uint256 tokenId = hash & 0x00FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF;

        _safeMint(to, tokenId);
        _setTokenURI(tokenId, uri);
        emit TokenMinted(to, tokenId, uri);
    }

    function transferCrossChain(
        uint256 tokenId,
        address receiver,
        address destination
    ) external payable {
        if (receiver == address(0)) revert InvalidAddress();

        string memory uri = tokenURI(tokenId);
        _burn(tokenId);
        bytes memory message = abi.encode(
            destination,
            receiver,
            tokenId,
            uri,
            msg.sender
        );
        if (destination == address(0)) {
            gateway.call(
                universal,
                message,
                RevertOptions(address(this), false, address(0), message, 0)
            );
        } else {
            gateway.depositAndCall{value: msg.value}(
                universal,
                message,
                RevertOptions(
                    address(this),
                    true,
                    address(0),
                    abi.encode(receiver, tokenId, uri, msg.sender),
                    gasLimitAmount
                )
            );
        }

        emit TokenTransfer(destination, receiver, tokenId, uri);
    }

    function onCall(
        MessageContext calldata context,
        bytes calldata message
    ) external payable onlyGateway returns (bytes4) {
        if (context.sender != universal) revert Unauthorized();

        (
            address receiver,
            uint256 tokenId,
            string memory uri,
            uint256 gasAmount,
            address sender
        ) = abi.decode(message, (address, uint256, string, uint256, address));

        _safeMint(receiver, tokenId);
        _setTokenURI(tokenId, uri);
        if (gasAmount > 0) {
            if (sender == address(0)) revert InvalidAddress();
            (bool success, ) = payable(sender).call{value: gasAmount}("");
            if (!success) revert GasTokenTransferFailed();
        }
        emit TokenTransferReceived(receiver, tokenId, uri);
        return "";
    }

    function onRevert(RevertContext calldata context) external onlyGateway {
        (, uint256 tokenId, string memory uri, address sender) = abi.decode(
            context.revertMessage,
            (address, uint256, string, address)
        );

        _safeMint(sender, tokenId);
        _setTokenURI(tokenId, uri);
        emit TokenTransferReverted(sender, tokenId, uri);
    }

    receive() external payable {}

    fallback() external payable {}

    // The following functions are overrides required by Solidity.

    function _update(
        address to,
        uint256 tokenId,
        address auth
    ) internal override(ERC721, ERC721Enumerable) returns (address) {
        return super._update(to, tokenId, auth);
    }

    function _increaseBalance(
        address account,
        uint128 value
    ) internal override(ERC721, ERC721Enumerable) {
        super._increaseBalance(account, value);
    }

    function tokenURI(
        uint256 tokenId
    ) public view override(ERC721, ERC721URIStorage) returns (string memory) {
        return super.tokenURI(tokenId);
    }

    function supportsInterface(
        bytes4 interfaceId
    )
        public
        view
        override(ERC721, ERC721Enumerable, ERC721URIStorage)
        returns (bool)
    {
        return super.supportsInterface(interfaceId);
    }
}

Minting an NFT

safeMint mint a new NFT. Token ID is generated from the contract address, block time, and an incrementing integer. This ensures that the token ID is unique across all chains. The only scenario where ID collision is possible is when two contracts are deployed on the same address on two different chains, and an NFT is minted on both exactly at the same time using the same integer. You can supply your own logic for generating token IDs.

Transfer NFT from ZetaChain to a Connected Chain

transferCrossChain transfers an NFT from ZetaChain to a connected chain. Transferring an NFT to a connected chain creates a transaction on a connected chain, which costs gas. To pay for gas, the NFT sender must provide the universal app with tokens for gas in the form of ZRC-20 version of the gas token of the connected chain. For example, when a user transfers an NFT from ZetaChain to Ethereum, they need to allow the contract to spend a certain amount of ZRC-20 ETH.

The function transfers the ZRC-20 tokens to the gateway contract.

Next, the function encodes the token ID, sender's address and the URI into a message.

callOptions are defined with the gas limit on the destination chain and isArbitraryCall (the second parameter) is set to false. isArbitraryCall determines if the call is arbitrary (a call to any contract on the destination chain, but without providing address of the universal contract making the call) or authenticated (the call is made to onCall function, the universal contract address is passed as a parameter). Setting isArbitraryCall to false is important, because the contract on a connected chain must know which universal contract is making a call to prevent unauthorized calls.

revertOptions contain the address of a contract on ZetaChain, which will be called if the contract on the destination chain reverts (in our example we want to call the same universal contract), as well as the message that will be passed to the onRevert function of the revert contract. Pass the same encoded message to ensure that the universal contract can successfully mint the token back to the sender if the transfer fails.

Finally, gateway.call is executed to initiate a cross-chain transfer of an NFT from ZetaChain to a connected chain. The destination chain is determined by the ZRC-20 contract address, which corresponds to the gas token of the connected chain. For example, to transfer the NFT to Ethereum, pass address of ZRC-20 ETH.

Handling NFT Transfers from Connected Chains

onCall is executed when an NFT transfer is received from a connected chain.

First, onCall checks that the transfer originates from a trusted counterparty contract. This prevents unauthorized minting by malicious contracts.

Since all cross-chain transfers are processed by ZetaChain, there are two scenarios when onCall is executed: when the destination is ZetaChain or when the destination is another connected chain.

If the destination is a zero address, then the destination chain is ZetaChain. An NFT is minted and transferred to the recipient.

If the destination is a non-zero address, the destination chain is another connected chain identified by the ZRC-20 gas token address in the destination field of the message. The contract initiates a transfer to the connected chain. First, it queries the withdraw fee on the destination chain. Then, it swaps the incoming ZRC-20 tokens into the ZRC-20 gas token of the destination chain. The swap uses the built-in Uniswap v2 pools, but any other swap mechanism can be used, instead. Finally, gateway.call is executed to initiate the transfer to the destination chain.

Revert Handling

If an NFT transfer from ZetaChain to a connected chain fails, onRevert is called. onRevert mints the NFT and transfers it back to original sender.

Connected Chain Contract

zetachain/UniversalNFT.sol
// SPDX-License-Identifier: MIT
pragma solidity ^0.8.26;

import "@openzeppelin/contracts/token/ERC721/ERC721.sol";
import "@openzeppelin/contracts/token/ERC721/extensions/ERC721Enumerable.sol";
import "@openzeppelin/contracts/token/ERC721/extensions/ERC721URIStorage.sol";
import "@openzeppelin/contracts/token/ERC721/extensions/ERC721Burnable.sol";
import "@openzeppelin/contracts/access/Ownable2Step.sol";
import {RevertContext, RevertOptions} from "@zetachain/protocol-contracts/contracts/Revert.sol";
import "@zetachain/protocol-contracts/contracts/zevm/interfaces/UniversalContract.sol";
import "@zetachain/protocol-contracts/contracts/zevm/interfaces/IGatewayZEVM.sol";
import "@zetachain/protocol-contracts/contracts/zevm/GatewayZEVM.sol";
import {SwapHelperLib} from "@zetachain/toolkit/contracts/SwapHelperLib.sol";
import {SystemContract} from "@zetachain/toolkit/contracts/SystemContract.sol";
import "../shared/Events.sol";

abstract contract UniversalNFT is
    ERC721,
    ERC721Enumerable,
    ERC721URIStorage,
    Ownable2Step,
    UniversalContract,
    Events
{
    GatewayZEVM public immutable gateway;
    address public immutable uniswapRouter;
    uint256 private _nextTokenId;
    bool public constant isUniversal = true;
    uint256 public immutable gasLimitAmount;

    error TransferFailed();
    error Unauthorized();
    error InvalidAddress();
    error InvalidGasLimit();
    error ApproveFailed();

    mapping(address => address) public connected;

    modifier onlyGateway() {
        if (msg.sender != address(gateway)) revert Unauthorized();
        _;
    }

    constructor(
        address payable gatewayAddress,
        uint256 gas,
        address uniswapRouterAddress
    ) {
        if (gatewayAddress == address(0) || uniswapRouterAddress == address(0))
            revert InvalidAddress();
        if (gas == 0) revert InvalidGasLimit();
        gateway = GatewayZEVM(gatewayAddress);
        uniswapRouter = uniswapRouterAddress;
        gasLimitAmount = gas;
    }

    function setConnected(
        address zrc20,
        address contractAddress
    ) external onlyOwner {
        connected[zrc20] = contractAddress;
        emit SetConnected(zrc20, contractAddress);
    }

    function transferCrossChain(
        uint256 tokenId,
        address receiver,
        address destination
    ) public {
        if (receiver == address(0)) revert InvalidAddress();
        string memory uri = tokenURI(tokenId);
        _burn(tokenId);

        (address gasZRC20, uint256 gasFee) = IZRC20(destination)
            .withdrawGasFeeWithGasLimit(gasLimitAmount);
        if (destination != gasZRC20) revert InvalidAddress();
        if (
            !IZRC20(destination).transferFrom(msg.sender, address(this), gasFee)
        ) revert TransferFailed();
        if (!IZRC20(destination).approve(address(gateway), gasFee)) {
            revert ApproveFailed();
        }
        bytes memory message = abi.encode(
            receiver,
            tokenId,
            uri,
            0,
            msg.sender
        );

        CallOptions memory callOptions = CallOptions(gasLimitAmount, false);

        RevertOptions memory revertOptions = RevertOptions(
            address(this),
            true,
            address(0),
            abi.encode(tokenId, uri, msg.sender),
            gasLimitAmount
        );

        gateway.call(
            abi.encodePacked(connected[destination]),
            destination,
            message,
            callOptions,
            revertOptions
        );

        emit TokenTransfer(receiver, destination, tokenId, uri);
    }

    function safeMint(address to, string memory uri) public onlyOwner {
        uint256 hash = uint256(
            keccak256(
                abi.encodePacked(address(this), block.number, _nextTokenId++)
            )
        );

        uint256 tokenId = hash & 0x00FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF;

        _safeMint(to, tokenId);
        _setTokenURI(tokenId, uri);
    }

    function onCall(
        MessageContext calldata context,
        address zrc20,
        uint256 amount,
        bytes calldata message
    ) external override onlyGateway {
        if (context.sender != connected[zrc20]) revert Unauthorized();

        (
            address destination,
            address receiver,
            uint256 tokenId,
            string memory uri,
            address sender
        ) = abi.decode(message, (address, address, uint256, string, address));

        if (destination == address(0)) {
            _safeMint(receiver, tokenId);
            _setTokenURI(tokenId, uri);
            emit TokenTransferReceived(receiver, tokenId, uri);
        } else {
            (address gasZRC20, uint256 gasFee) = IZRC20(destination)
                .withdrawGasFeeWithGasLimit(gasLimitAmount);
            if (destination != gasZRC20) revert InvalidAddress();

            uint256 out = SwapHelperLib.swapExactTokensForTokens(
                uniswapRouter,
                zrc20,
                amount,
                destination,
                0
            );

            if (!IZRC20(destination).approve(address(gateway), out)) {
                revert ApproveFailed();
            }
            gateway.withdrawAndCall(
                abi.encodePacked(connected[destination]),
                out - gasFee,
                destination,
                abi.encode(receiver, tokenId, uri, out - gasFee, sender),
                CallOptions(gasLimitAmount, false),
                RevertOptions(
                    address(this),
                    true,
                    address(0),
                    abi.encode(tokenId, uri, sender),
                    0
                )
            );
        }
        emit TokenTransferToDestination(receiver, destination, tokenId, uri);
    }

    function onRevert(RevertContext calldata context) external onlyGateway {
        (uint256 tokenId, string memory uri, address sender) = abi.decode(
            context.revertMessage,
            (uint256, string, address)
        );

        _safeMint(sender, tokenId);
        _setTokenURI(tokenId, uri);
        emit TokenTransferReverted(sender, tokenId, uri);
    }

    // The following functions are overrides required by Solidity.

    function _update(
        address to,
        uint256 tokenId,
        address auth
    ) internal override(ERC721, ERC721Enumerable) returns (address) {
        return super._update(to, tokenId, auth);
    }

    function _increaseBalance(
        address account,
        uint128 value
    ) internal override(ERC721, ERC721Enumerable) {
        super._increaseBalance(account, value);
    }

    function tokenURI(
        uint256 tokenId
    ) public view override(ERC721, ERC721URIStorage) returns (string memory) {
        return super.tokenURI(tokenId);
    }

    function supportsInterface(
        bytes4 interfaceId
    )
        public
        view
        override(ERC721, ERC721Enumerable, ERC721URIStorage)
        returns (bool)
    {
        return super.supportsInterface(interfaceId);
    }
}

Transfer NFT from a Connected Chain

transferCrossChain initiates a transfer of an NFT to ZetaChain or to another connected chain.

To transfer an NFT to ZetaChain the destination address must be specified as a zero address.

To transfer an NFT to another connected chain the destination address must be the ZRC-20 address of the gas token of the destination chain. For example, to transfer to Ethereum, the destination is ZRC-20 ETH address.

When transferring to ZetaChain a no asset gateway.call is executed, because cross-chain calls to ZetaChain do not require the sender to cover gas costs.

When transferring to another connected chain, gateway.depositAndCall is executed with some gas tokens to cover the gas costs on the destination chain.

Handling NFT Transfers

onCall is executed when an NFT transfer is received from a connected chain or ZetaChain.

Since all cross-chain transactions go through a universal contract on ZetaChain, onCall checks that the call is made from a trusted counterparty universal contract address to prevent unauthorized minting.

Revert Handling

If an NFT transfer from ZetaChain to a connected chain fails, onRevert is called. onRevert mints the NFT and transfers it back to original sender.
